15 Trellis Ideas for Dragon Fruit: Best Structures, Materials & Setup Guide
Introduction
Dragon fruit is one of the most rewarding plants you can grow in a warm US climate — but it will not perform without the right support. This sprawling cactus vine can reach 20 feet and weigh over 100 lbs at maturity. Without a solid trellis, it collapses, rots, and never flowers properly.
This guide covers 15 trellis ideas that actually work for dragon fruit, with real costs, materials, and where to buy in the USA. Whether you have a backyard in Florida, Texas, or California — there is a setup here that fits your space and budget.
Section 1: Why Dragon Fruit Needs a Specific Trellis
Dragon fruit is an epiphytic cactus — in nature it climbs trees using aerial roots. On a trellis, it does the same. But it has specific needs most gardeners miss:
- It needs a flat or umbrella top to drape over and hang down — this triggers flowering
- The post must hold 150+ lbs at maturity
- The structure must allow good air circulation to prevent rot
- It needs full sun — the trellis should not shade the plant
A standard garden trellis will not work. Dragon fruit needs a purpose-built or heavy-duty structure.
Section 2: Best Trellis Materials for Dragon Fruit
| Material | Durability | Cost Range | Best For |
|---|---|---|---|
| Concrete Post | Excellent | $20–$60 per post | Permanent, large plants |
| Galvanized Steel Pipe | Excellent | $40–$120 | High-wind areas, long-term |
| Pressure-treated Wood | Good | $15–$50 per post | Budget builds, DIY |
| Cedar Wood | Good | $25–$80 | Natural look, smaller plants |
| PVC Pipe | Moderate | $10–$30 | Lightweight, temporary |
| T-Post (Metal Fence Post) | Good | $8–$20 each | Budget, fast install |
| Rebar + Concrete | Excellent | $30–$80 | Strongest DIY option |
Tip: Whatever post you choose, always top it with a tire, wooden wheel, or cross-arm frame so the cactus can spread out and hang down — that hanging position is what triggers fruit production.
Section 3: 15 Trellis Ideas for Dragon Fruit

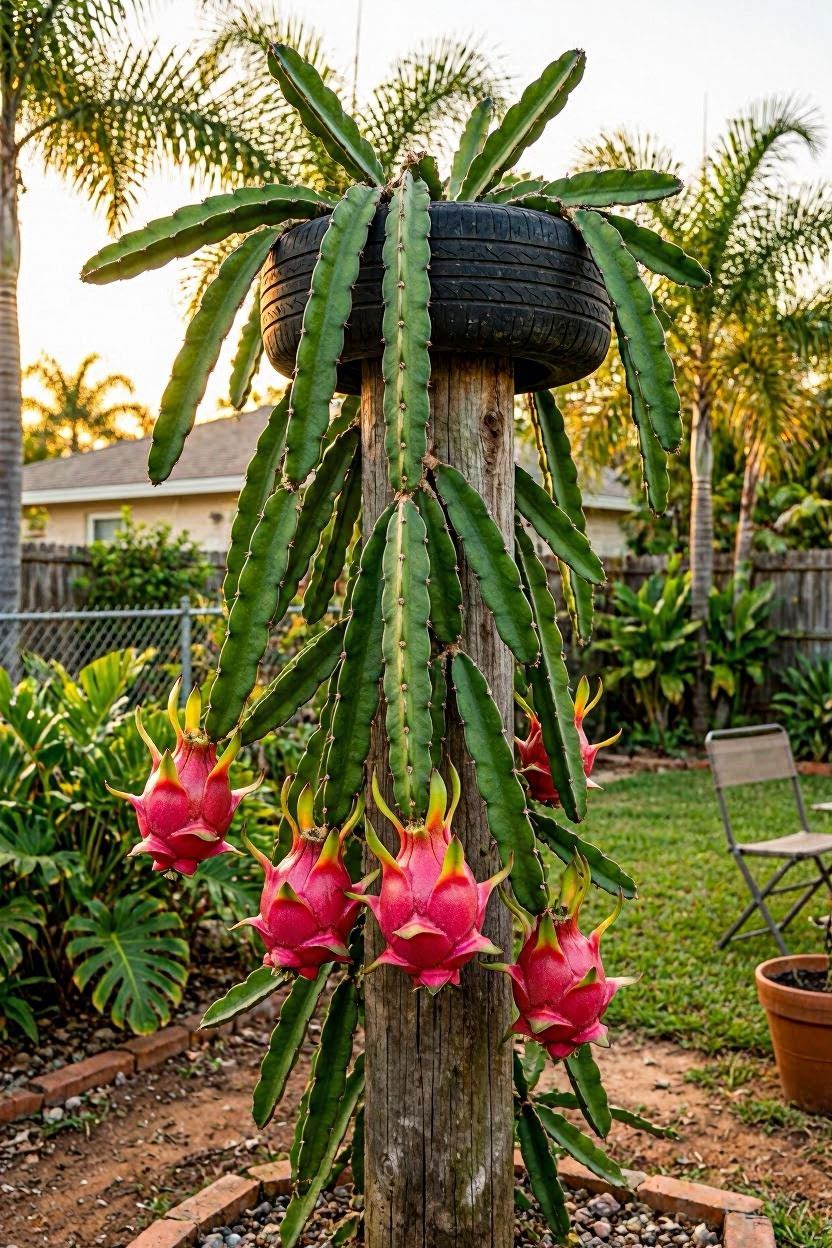

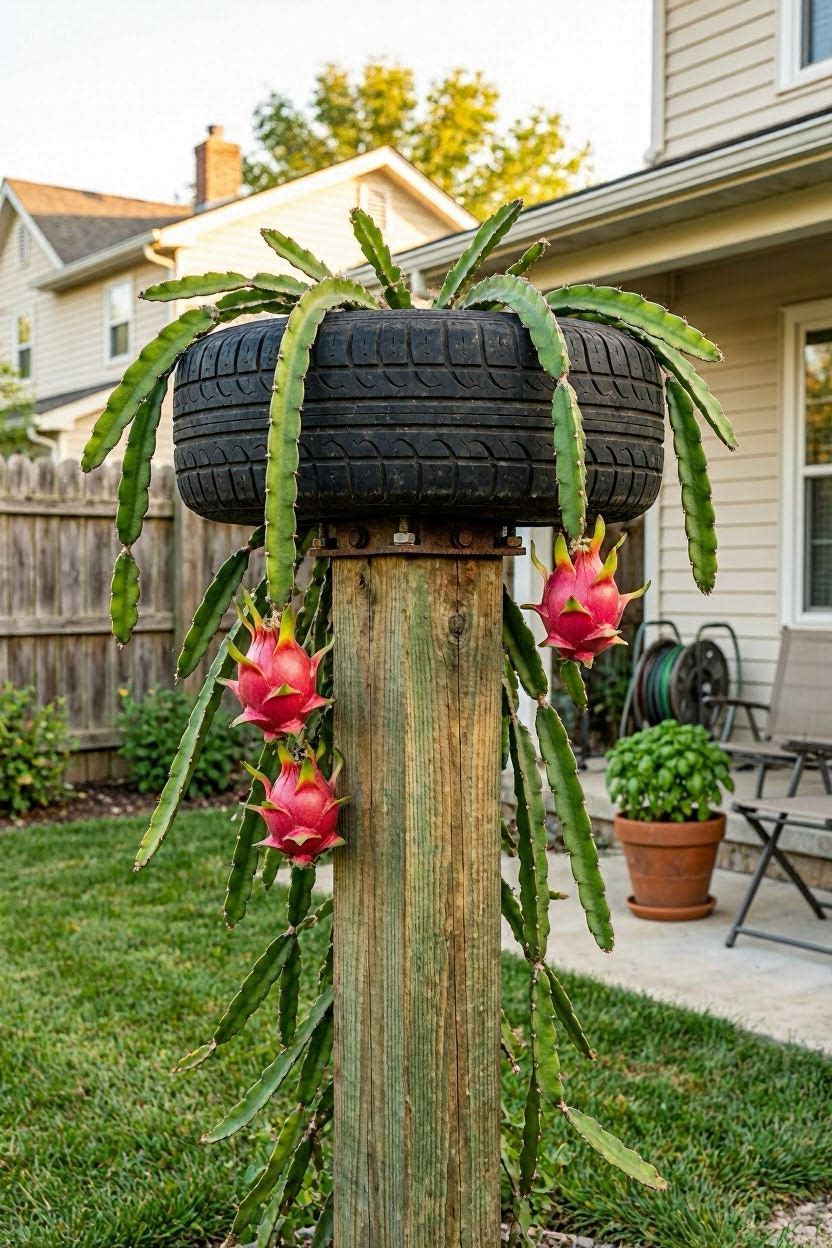

3.1 Single Wooden Post with Tire Top
The most popular dragon fruit trellis in the USA. A 4×4 pressure-treated wood post is set 2 feet into the ground, and an old car tire is bolted flat on top. The cactus grows up the post and drapes over the tire.
- Post height: 5–6 ft above ground
- Material: 4×4 pressure-treated pine + one car tire
- Cost: $15–$40 total (post from Home Depot; tire from any tire shop — often free)
- Best for: Beginners, small backyards, Florida and Texas growers
How to install: Dig a 2-ft hole, set post in concrete (one 50-lb bag of Quikrete = $7), let cure 24 hours. Bolt tire flat on top using 4 bolts through the post.

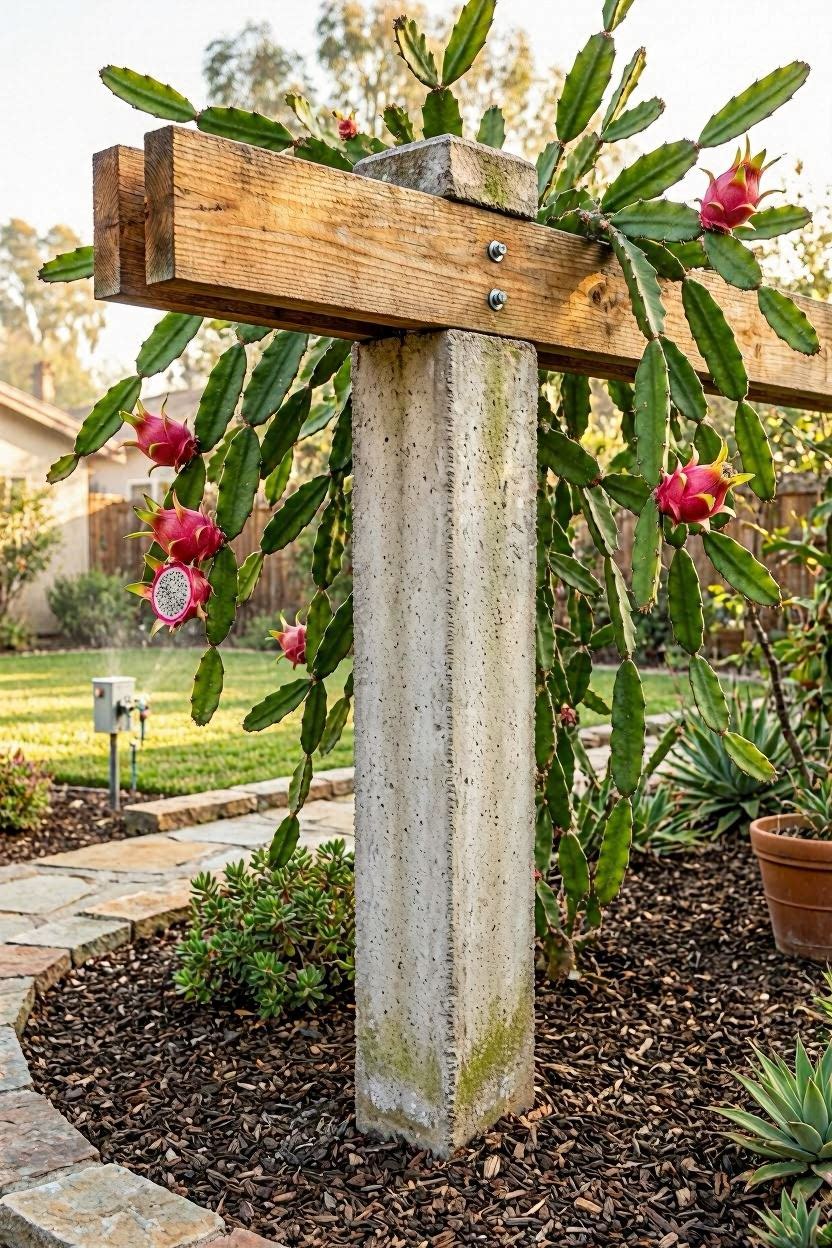

3.2 Concrete Post with Cross-Arm Top
A pre-cast concrete fence post with a wooden 2×4 cross-arm nailed across the top in a T or X shape. The cactus arms drape over the cross and cascade down, producing flowers and fruit at the hanging tips.
- Post height: 5–7 ft above ground
- Material: Pre-cast concrete post + 2×4 cedar arms
- Cost: $25–$70
- Best for: Permanent installations, mature plants, California gardens
Cross-arm size: 3–4 ft wide gives the plant enough spread. Secure the arm with two 6-inch galvanized bolts through the post.
3.3 Galvanized Steel Pipe Post
Heavy-duty galvanized steel pipe (2-inch diameter) set in concrete is the most durable single-post option. It will outlast the plant and handle any weather.
- Cost: $50–$120 for post + installation hardware
- Where to buy: Home Depot, Lowe’s plumbing section
- Best for: Coastal areas (Florida, Hawaii), high-wind zones
Top with a welded steel ring or bolt-on wooden cross-arm to give the cactus a surface to drape over.

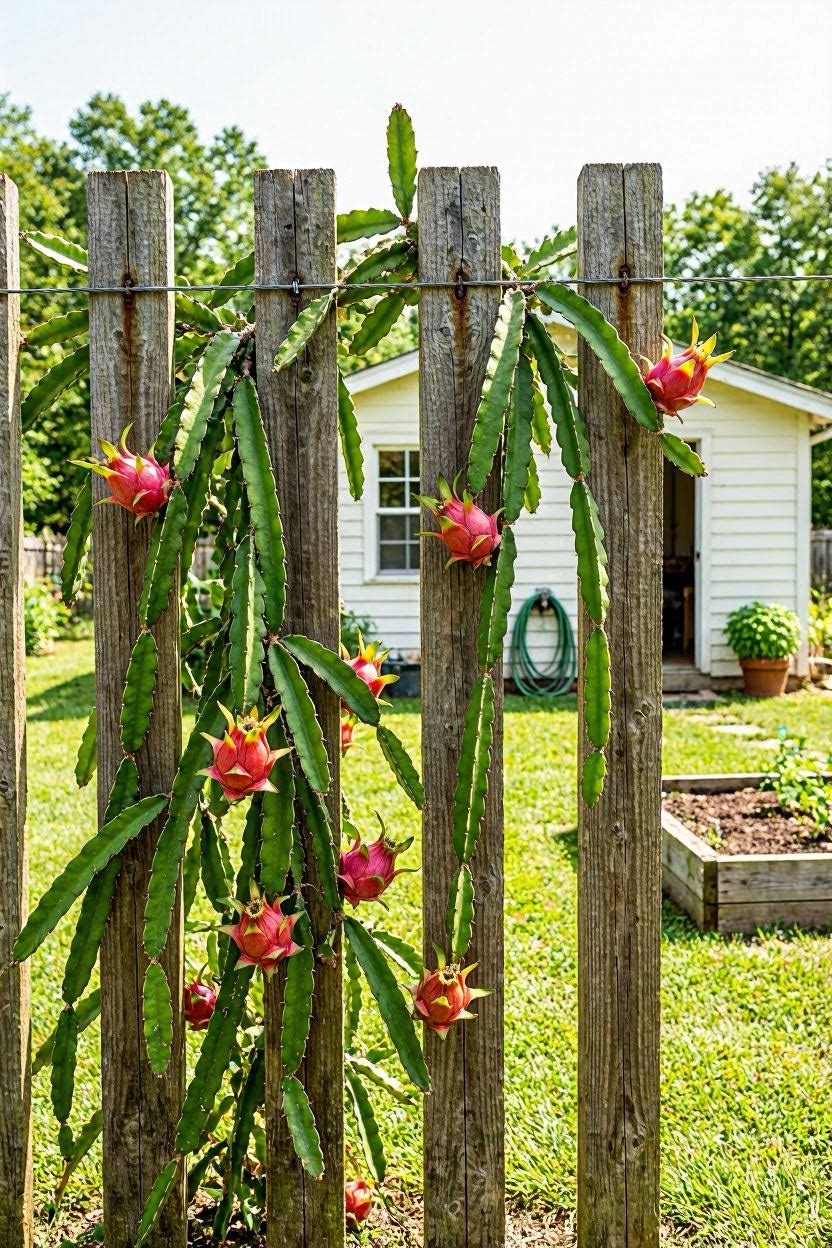

3.4 Multi-Post Row System
For growing multiple dragon fruit plants, space posts 8–10 feet apart in a row and run two horizontal wires — one at mid-height and one at the top. Each plant climbs its own post and drapes along the top wire.
- Posts: 4×4 pressure-treated, 6 ft above ground
- Wire: 12-gauge galvanized wire (tensioned between posts)
- Cost: $80–$200 for a 4-post row
- Best for: Backyard orchards, homesteaders, commercial growers
This system is used on most dragon fruit farms in the USA and is the most efficient for fruit production.
3.5 Old Telephone Pole / Utility Pole
Salvaged telephone poles or utility poles make ultra-durable dragon fruit posts. They are pressure-treated to last 40+ years and are wide enough for the cactus to grab without a top frame.
- Cost: $20–$80 from salvage yards or Craigslist
- Height: Cut to 6–7 ft above ground
- Best for: Rustic gardens, large properties, long-term growers
Where to find: Facebook Marketplace, Craigslist, local utility companies often sell retired poles.

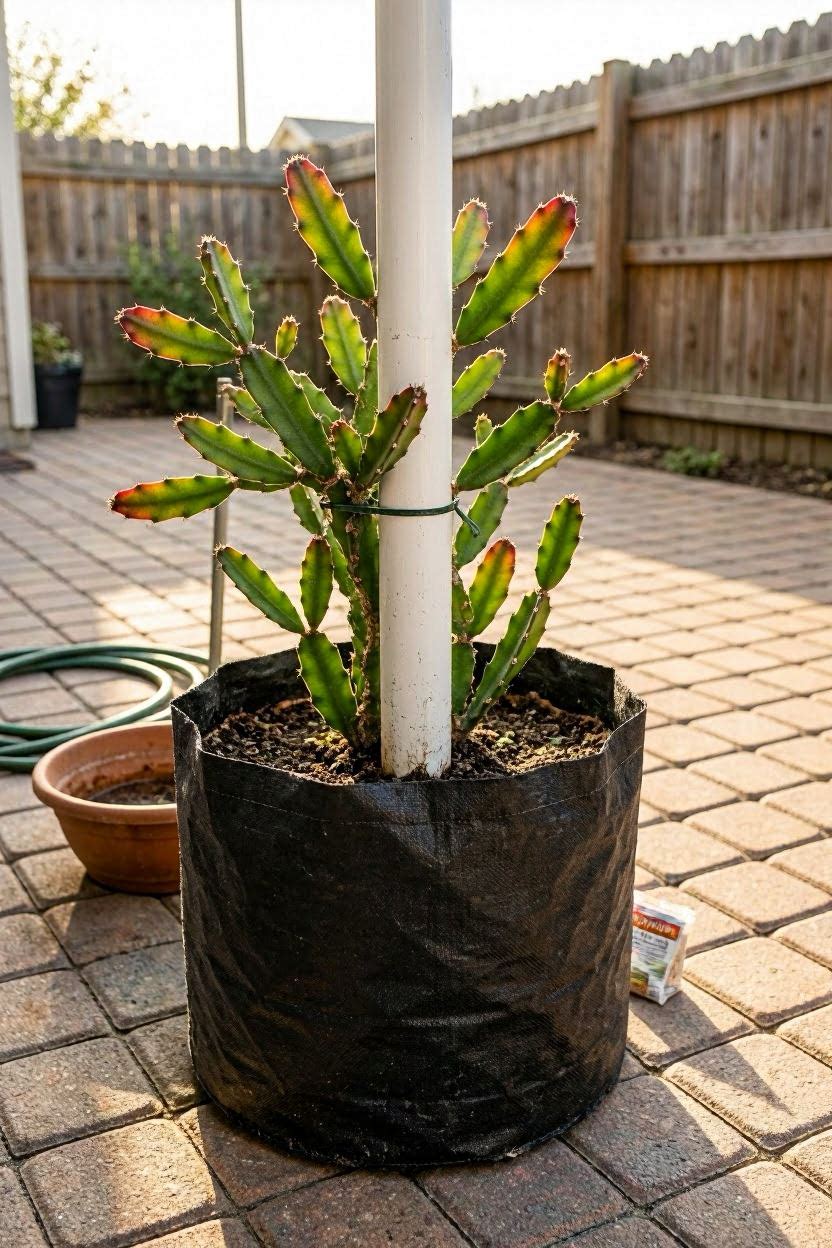

3.6 PVC Pipe Post (Budget Option)
A 4-inch PVC pipe filled with sand or concrete for weight makes a lightweight, rust-proof post. Best for container growing or temporary setups.
- Material: 4-inch schedule 40 PVC pipe
- Cost: $10–$25 for a 6-ft section at Home Depot
- Best for: Container growers, renters, small patios
Limitation: PVC can flex under a heavy mature plant. Reinforce with a rebar insert inside the pipe for plants older than 2 years.
3.7 T-Post with Tire Top (Budget Farm Style)
Metal T-posts (used for fencing) cost $8–$15 each and can be driven into the ground without digging. Top with a tire or cross-arm for a fast, cheap dragon fruit trellis.
- Cost: Under $25 total
- Where to buy: Tractor Supply Co., Home Depot, Rural King
- Best for: Rural properties, quick setups, multiple plants
Note: T-posts work for young plants. Once the cactus exceeds 50 lbs, upgrade to a concrete or wood post.

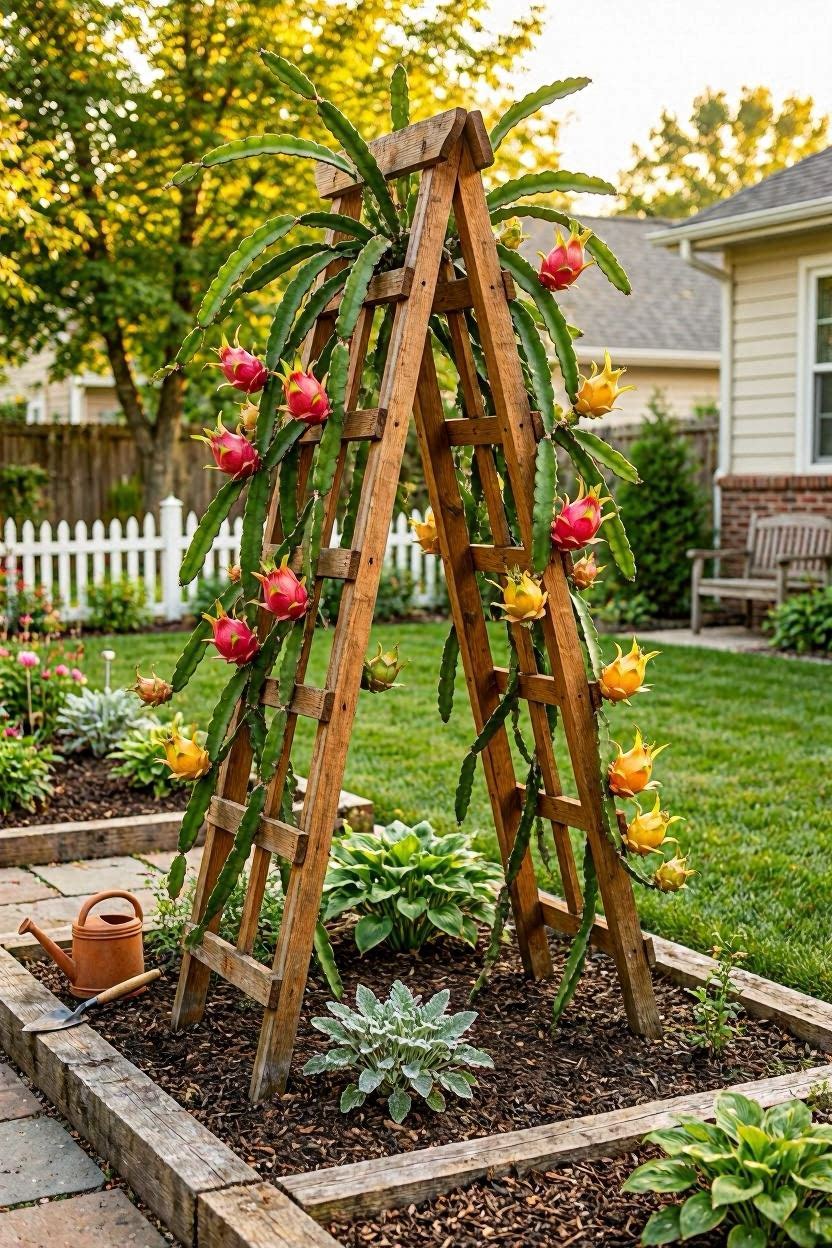

3.8 Wooden A-Frame Trellis
Two wooden posts leaned together in an A-shape with a horizontal bar at the top. The cactus climbs to the peak and cascades down both sides.
- Material: 4×4 cedar or pressure-treated pine
- Cost: $40–$90 DIY build
- Best for: Freestanding backyard feature, no-dig installations
A-frames work beautifully as garden focal points. Place one at the end of a garden bed for a dramatic look.
3.9 Steel Rebar Post in Concrete
Rebar (3/4 inch, 10-ft length) driven 2 feet into a concrete footing makes the cheapest permanent metal post option. Weld or bolt a cross-arm at the top.
- Cost: $5–$15 for rebar + $7 for Quikrete bag = under $25
- Where to buy: Home Depot, Lowe’s
- Best for: Budget builders, multiple posts for a row system
Rebar rusts over time but dragon fruit plants live 20+ years — apply a rust-inhibitor coat every 2–3 years.
3.10 Wooden Wagon Wheel Top Trellis
A decorative wooden wagon wheel bolted to the top of a post gives the dragon fruit a wide, round surface to drape over — and it looks stunning in a garden. This is the showpiece version of the tire-top trellis.
- Cost: $30–$80 for a 24-inch wagon wheel (Amazon, Etsy, farm supply stores)
- Best for: Decorative gardens, front yards, Instagram-worthy setups
The spokes of the wheel give the cactus arms natural channels to lie in, making training easier.
3.11 Concrete Block + Steel Post Combo
Set a 4×4 concrete block (standard paver block) as a footing, then bolt a steel post on top. No digging required — the weight of the block holds everything.
- Cost: $20–$50
- Best for: Renters, hard-ground areas, patio installations
Stack 3–4 blocks for extra stability and pour a little concrete between them.

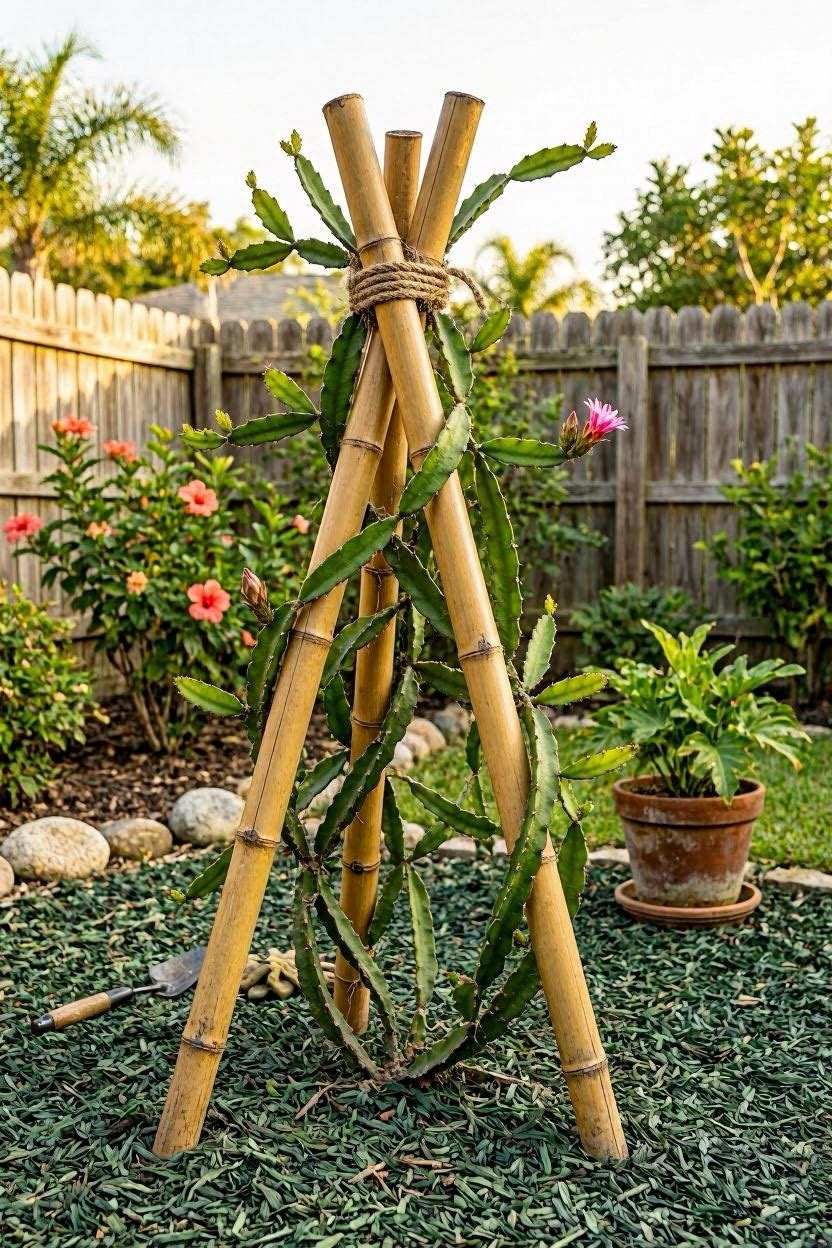

3.12 Bamboo Tripod Post
Three thick bamboo poles (2-inch diameter, 8 ft long) lashed together at the top form a tripod. The dragon fruit climbs all three legs.
- Cost: $15–$35 (bamboo poles from Amazon or Asian garden centers)
- Best for: Tropical-style gardens, young plants, temporary support
Limitation: Bamboo lasts 2–4 years outdoors in humid climates. Treat with linseed oil to extend life.
3.13 Fence Post Row with Hanging Wire
Use existing fence posts or install new ones at 8-ft intervals. String 12-gauge wire between posts at 5–6 ft height. Dragon fruit grows up and hangs over the wire.
- Cost: $30–$80 for a 4-post wire row
- Best for: Side yard installations, privacy screening
Wire rows are popular in Southern California neighborhoods where growers use the fence line to grow multiple plants.
3.14 Spiral Rebar Tower
Bend a 10-ft rebar into a loose spiral and set it in the ground. The dragon fruit wraps around the spiral as it grows upward — no ties needed.
- Cost: Under $20 total
- Best for: Small containers, decorative gardens, single plant display
This is the most space-efficient option for container growers with limited patio room.

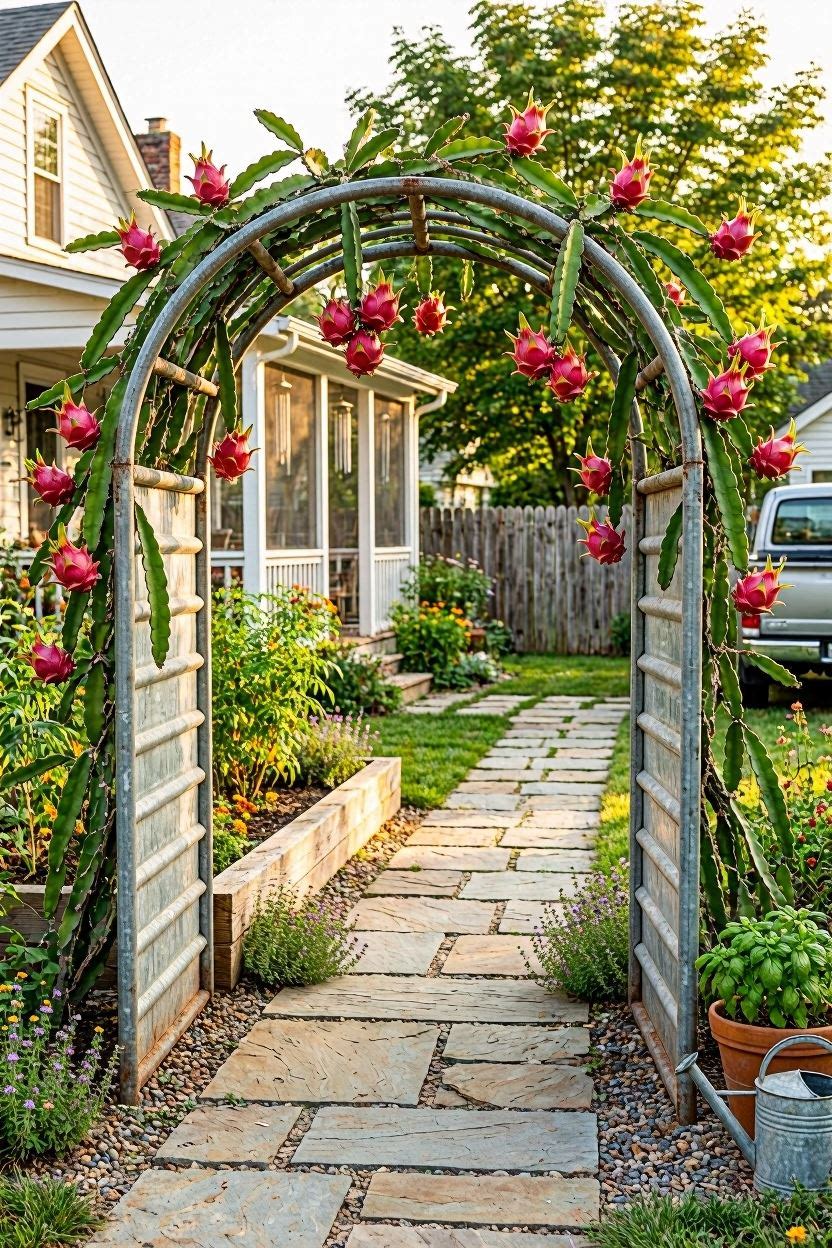

3.15 Metal Cattle Panel Arch
A 16-ft galvanized cattle panel (from Tractor Supply Co., $30–$50) bent into an arch and anchored in the ground. Multiple dragon fruit plants grow up the sides and cascade over the top.
- Cost: $30–$80 for panel + T-posts
- Best for: Large backyards, growing tunnels, homesteaders
- Where to buy: Tractor Supply Co., Rural King, local farm supply stores
This creates a living dragon fruit tunnel — one of the most productive and dramatic setups for home growers.
Section 4: Quick Comparison — 15 Trellis Ideas at a Glance
| # | Trellis Type | Cost | Difficulty | Best For |
|---|---|---|---|---|
| 1 | Wood Post + Tire Top | $15–$40 | Easy | Beginners |
| 2 | Concrete Post + Cross-Arm | $25–$70 | Easy | Permanent setups |
| 3 | Galvanized Steel Pipe | $50–$120 | Moderate | Coastal/wind areas |
| 4 | Multi-Post Row System | $80–$200 | Moderate | Multiple plants |
| 5 | Telephone Pole | $20–$80 | Easy | Large properties |
| 6 | PVC Pipe Post | $10–$25 | Easy | Containers, renters |
| 7 | T-Post + Tire | Under $25 | Easy | Budget, rural |
| 8 | Wood A-Frame | $40–$90 | Moderate | Freestanding feature |
| 9 | Rebar in Concrete | Under $25 | Easy | Budget permanent |
| 10 | Wagon Wheel Top | $30–$80 | Easy | Decorative gardens |
| 11 | Concrete Block + Steel | $20–$50 | Easy | No-dig, renters |
| 12 | Bamboo Tripod | $15–$35 | Easy | Young plants |
| 13 | Fence Post + Wire Row | $30–$80 | Moderate | Side yards |
| 14 | Spiral Rebar Tower | Under $20 | Easy | Containers |
| 15 | Cattle Panel Arch | $30–$80 | Moderate | Homesteaders |
Section 5: How to Set Up a Dragon Fruit Trellis Step by Step
Step 1 — Choose the Right Height
Set your post so 5–6 feet sticks above ground. Too short and the cactus will crowd the base. Too tall and maintenance becomes difficult.
Step 2 — Set the Post in Concrete
Dig or auger a 2-foot-deep hole. Drop the post in, pour one bag of Quikrete Fast-Setting Concrete ($7 at Home Depot), add water, and let cure for 4 hours before touching.
Step 3 — Install a Top Platform
Bolt a tire, wagon wheel, wooden cross-arm, or steel ring to the post top. This is the most important step — without a top platform, dragon fruit cannot cascade and will not fruit well.
Step 4 — Plant at the Base and Tie Early
Plant the cutting or rooted plant 6 inches from the post base. Use soft cloth ties or Velcro plant ties ($6–$12 on Amazon) to attach the cactus to the post every 12 inches as it grows. Never use wire — it cuts the soft stem.
Step 5 — Train Arms to Hang Down
Once cactus arms reach the top, gently lay them over the platform and let them hang naturally. Hanging stems = flowering stems. Do not cut them off — those drooping tips are where your fruit will come from.
Section 6: Where to Buy Dragon Fruit Trellis Supplies in the USA
| Store | What to Buy | Price Range |
|---|---|---|
| Home Depot | 4×4 posts, PVC pipe, Quikrete, rebar | $5–$80 |
| Lowe’s | Cedar posts, galvanized pipe, wire | $10–$120 |
| Tractor Supply Co. | T-posts, cattle panels, wire fencing | $8–$80 |
| Amazon | Wagon wheels, bamboo poles, plant ties | $10–$100 |
| Rural King | T-posts, rebar, concrete | $5–$50 |
| Craigslist / Facebook | Telephone poles, salvage posts | $0–$80 |
| Local Tire Shop | Car tires for top | Free–$5 |
Section 7: FAQ
Q: How tall should a dragon fruit trellis be? Aim for 5–6 feet above ground. This gives the plant room to grow up and enough height for arms to hang down and flower.
Q: Can I use a regular garden trellis for dragon fruit? No. Standard flat trellises do not allow the cactus to cascade at the top, which is essential for fruit production. Dragon fruit needs a post with a top platform.
Q: How long before dragon fruit grows over the trellis? In USDA zones 9–12, a healthy cutting can reach the top of a 6-ft post in 12–18 months. It usually takes 2–3 years for the first flowers and fruit.
Q: How many plants per post? One plant per single post. For a row system, one plant every 8–10 feet works well.
Q: Does dragon fruit need to be tied to the trellis? Yes. Unlike ivy, dragon fruit does not grip on its own in early years. Tie regularly until the aerial roots take hold on the post surface.
Final Thoughts
Dragon fruit is a long-game plant — most growers wait 2–3 years for the first fruit. The trellis you build now will support the plant for 20+ years, so it is worth doing right the first time.
For most beginners, the wood post with a tire top is the easiest and cheapest way to start. Once you see it growing, you will want to add more posts and turn your backyard into a mini dragon fruit orchard. Start simple, build strong, and the plant will do the rest.
